Model QA61F-25/40CS/QF61F-25/40CS

Coliter ® Long Rod Direct Buried (Split Type) Welded Ball Valve – PN25/PN40, -10°C to 200°C, for Underground Pipeline Isolation

Go to
52
QA61F.1
52
QA61F.1

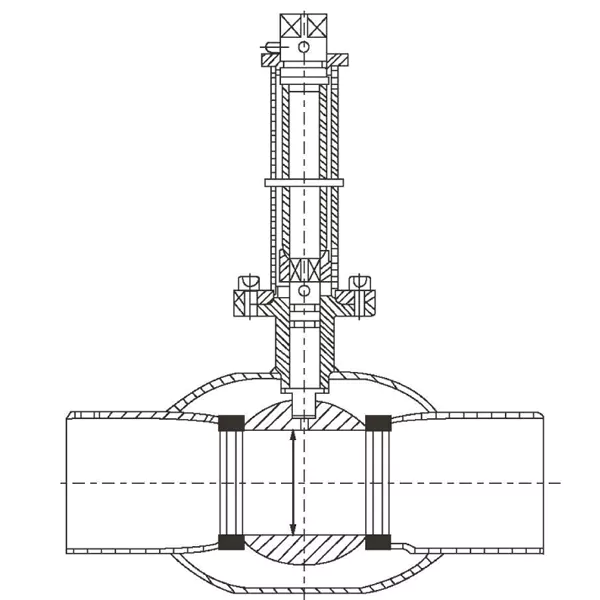

QA61F-25/40CS / QF61F-25/40CS Long Rod Direct Buried (Split Type) Welded Ball Valve – Fully Welded, Split-Body Design with Extended Operating Stem for Deep Burial Applications

The Coliter® QA61F-25/40CS / QF61F-25/40CS Long Rod Direct Buried (Split Type) Welded Ball Valve is specifically engineered for permanent underground installation in district heating, oil & gas transmission, and industrial pipeline networks. Unlike standard buried valves, it features a unique split-type fully welded body that allows internal assembly before final welding—ensuring structural integrity while simplifying manufacturing and inspection. Once installed directly in the trench, the valve remains completely sealed against soil, moisture, and external contaminants due to its 100% welded construction (no bolted joints). A key feature is the extended operating stem (long rod), which projects vertically to ground level or into a valve chamber, enabling manual operation via wrench or actuator without excavation. Available in two configurations:
• QA61F-25/40CS: Manual operation with extended square drive
• QF61F-25/40CS: Designed for future actuation or lockable handle
Constructed from high-grade carbon steel (A105/WCB), rated at PN25 (2.5 MPa) or PN40 (4.0 MPa), and suitable for media temperatures from -10°C to 200°C. The soft-seated design (PTFE/RPTFE) ensures bubble-tight shut-off (ISO 5208 Class VI). Additional features include anti-static device, fire-safe option, full-bore flow for pigging, and corrosion-resistant coating (e.g., epoxy or 3PE). Ideal for deep burial where maintenance access is limited, this valve delivers long-term reliability, zero external leakage, and safe isolation in critical buried infrastructure.

Installation diagram

Product Description

SpecificationsDN15-DN400
Working pressurePN25-PN40
Temperature range-10°C-200°C
