Coliter ® F-Type Gas Tee Ball Valve, 0.015MPa, -20–60°C, GB/T 196 Threaded
QF3131 F-Type Gas Tee Ball Valve – Brass 3-Way Shut-Off Valve for Low-Pressure Gas Meter and Appliance Branch Connections
The Coliter® QF3131 F-Type Gas Tee Ball Valve is a specialized brass 3-way ball valve designed for low-pressure gas distribution systems, commonly used to create a branch connection from a main gas line—such as between a gas meter and household appliances. Its "F-type" tee configuration features three ports: one inlet and two outlets, allowing selective shut-off of gas flow to individual lines while maintaining supply to others. Constructed from high-quality forged brass with PTFE seals, it ensures reliable, leak-tight performance in natural gas, manufactured gas, and liquefied petroleum gas (LPG) applications. Rated for a nominal pressure of 0.015 MPa and operating temperatures from -20°C to 60°C, it meets safety standards for residential gas installations. Threaded ends conform to GB/T 196 (compatible with ISO 228 parallel threads), with standard size DN15. The quarter-turn handle includes a clear open/close indicator for safe, intuitive operation.

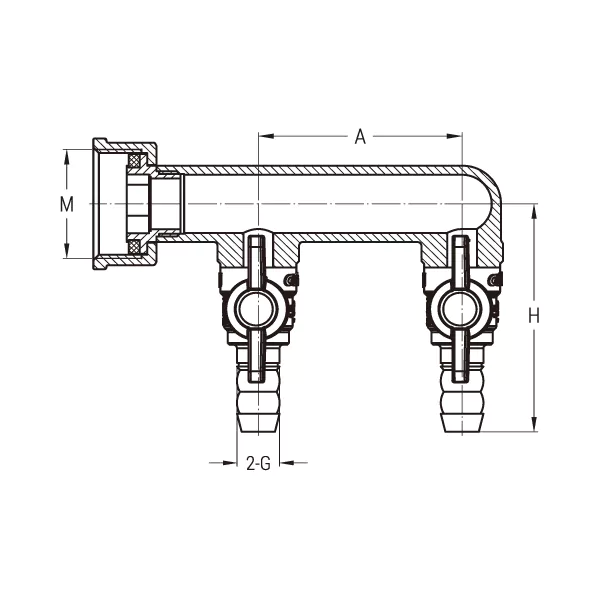

Installation diagram
Product Description
| DN | G | M | H | A |
| 15 | 2-Ø1.5 | 30x2 | 62.8 | 55 |
Technical Specifications
Nominal Pressure: 0.015MPa
Working Medium: Natural Gas, Manufactured Gas, Liquefied Petroleum Gas (LPG)
Working Temperature: -20℃ ≤ t ≤ 60℃
Pipe Threads: GB/T 196
