Coliter ® Diaphragm Type Multifunctional Water Pump Control Valve – PN16, ≤80°C, 3-in-1 Protection for Pump Systems

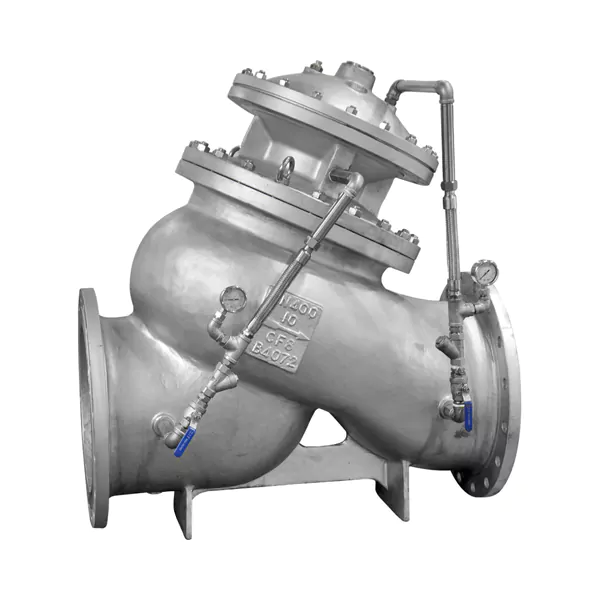

JD745X Diaphragm Type Multifunctional Water Pump Control Valve – Integrated Shut-off, Check, and Water Hammer Elimination in One Hydraulic Valve
The Coliter® JD745X Diaphragm Type Multifunctional Water Pump Control Valve is an intelligent, pilot-operated hydraulic valve installed at the pump outlet to provide comprehensive protection for water supply systems—particularly in high-rise buildings, pumping stations, and municipal networks. It seamlessly integrates three critical functions into a single unit: electric shut-off valve, non-return (check) valve, and water hammer eliminator. By combining slow opening during pump startup and two-stage slow closing during shutdown, it effectively prevents pressure surges, backflow, and mechanical stress. The valve operates automatically in sync with the pump motor: pressing the start button initiates gradual opening to avoid flow shock; pressing stop triggers controlled closure that dissipates kinetic energy smoothly, eliminating water hammer. Its diaphragm-driven design ensures reliable, low-friction operation and is especially suited for valves with nominal diameters up to DN600. Constructed from ductile iron with epoxy coating and brass internals, rated at PN16 (1.6 MPa), and suitable for media temperatures up to 80°C, it handles clean water only. Featuring large flow capacity and low pressure loss, the JD745X enhances system safety, reduces maintenance costs, and complies with international pump protection standards—all without requiring external power.
Installation diagram
Product Description
The diaphragm multi-function water pump control valve is an intelligent valve installed at the water pump outlet of the water supply system of high-rise buildings and other water supply systems to prevent backflow of media, water hammer and water hammer. The valve has three functions of electric valve, check valve and water hammer eliminator, which can effectively improve the safety and reliability of the water supply system. It also integrates the technical principles of slow opening, quick closing, and slow closing to eliminate water hammer to prevent the occurrence of water hammer when starting the pump and stopping the pump. Only need to operate the pump motor opening and closing button, the valve can be automatically opened and closed according to the pump operation regulations, with large flow and small pressure loss. Diaphragm type is suitable for valves below 600 caliber.
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Pump control valve
Coliter®’s pump control valves provide fully automatic, multi-functional protection for centrifugal pumps in water supply, fire protection, and HVAC systems—eliminating water hammer, backflow, and motor overload without external power. The series includes the JD745X diaphragm-type multifunctional pump control valve, which integrates shut-off, check, and slow-closing functions in one unit using pilot-controlled hydraulic operation, and the 700X hydraulic pressure relief/flow control valve for pump bypass and overload prevention. Constructed from high-quality ductile iron with epoxy coating and brass internals, these valves operate at PN16 (1.6 MPa) and temperatures up to 80°C. They enable soft start/stop, prevent pipe rupture, reduce maintenance costs, and comply with international pump safety standards—ideal for high-rise buildings, pumping stations, and industrial water networks.
