Coliter ® Manual/Automatic Manifold, PN1.0MPa, 0–110°C, Brass, 2–10 Circuits
FSQ1022 Manual/Automatic Manifold – Modular Distribution System for Hydronic Heating and Plumbing Applications

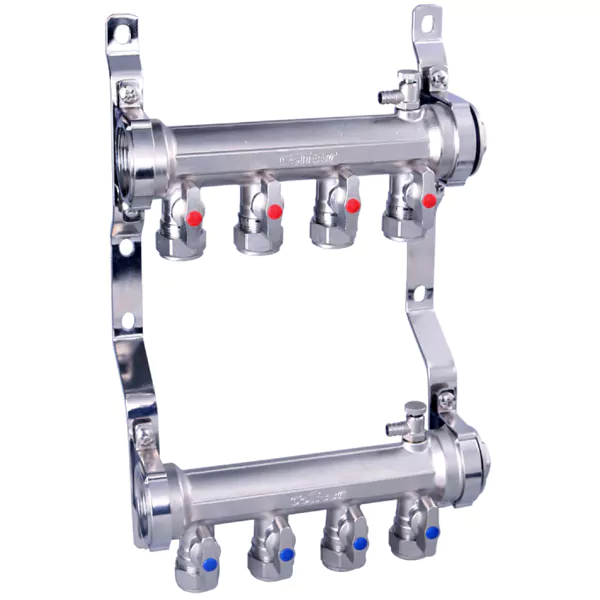

The Coliter® FSQ1022 Manual/Automatic Manifold is a high-performance brass manifold system designed for centralized distribution and control of hot and cold water in underfloor heating, radiator circuits, and domestic plumbing. Constructed from forged HPb58-2 brass with a nickel-plated finish, it features uniform wall thickness (≥2.0 mm), sand-blasted surface treatment, and full-port ball valves for reliable shut-off. Available with 2 to 10 circuits, it supports branch pipe connections of 16×2.0 mm or 20×2.0 mm PEX/PERT tubing at a standard spacing of 46 mm. The main header comes in DN25 or DN32 sizes with ISO 228 threads, and the center height is fixed at 210 mm. Designed for both manual operation and optional integration with electric actuators, it offers flexibility for smart home or conventional installations. Rated for PN ≤ 1.0 MPa and medium temperatures from 0°C to 110°C, the FSQ1022 ensures leak-free performance, easy maintenance via live-joint outlet adapters, and long-term durability in residential and light commercial applications.
Installation diagram
Product Description

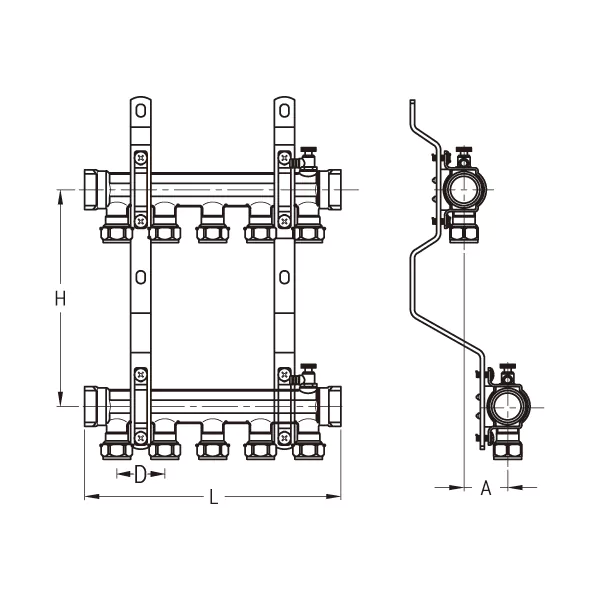

| DN | D | L | A | H |
| 25*1216 | 46 | (N-1)*46+64 | 36.5 | 210 |
| 32*1620 | 46 | (N-1)*46+70 | 36.5 | 210 |
Technical Specifications
Nominal Pressure: PN ≤ 1.0 MPa
Medium Temperature: 0℃ ≤ t ≤ 110℃
Main Pipe Connection: DN25 / DN32
Branch Pipe Spacing: 46 mm
Branch Pipe Connection: 1620
Material: Brass HPb58-2
Circuit Count: 2 - 10 Circuits
Center Height: 210 mm
Surface Finish: Nickel Plating
Working Medium: Hot and Cold Water
Product Features
1. One-Piece Forging: High-density hot forging ensures uniform wall thickness and freedom from sand holes.
2. Premium Appearance: Sand-blasted surface with nickel plating gives a steady and elegant look.
3. Durable Construction: Average wall thickness ≥ 2.0 mm, making it sturdy and durable.
4. Easy Maintenance: Live joint outlet adapters allow for convenient installation and maintenance.
5. High Flow Design: Can withstand water hammer impact and expansion/contraction due to temperature changes, ensuring no leaks or bursts.
