Coliter ® Brass Gas Ball Valve, 1.6MPa, -20–60°C, BSP Threaded
QF3122 Brass Gas Ball Valve – Full-Port Quarter-Turn Shut-Off for Natural Gas, LPG, and Manufactured Gas Systems

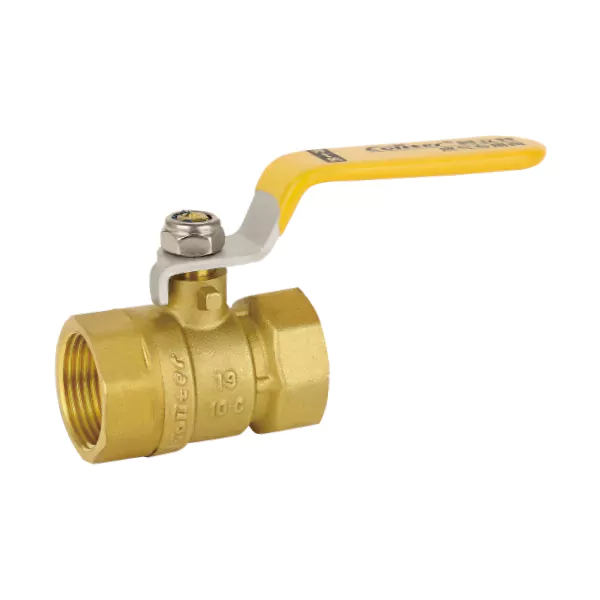

The Coliter® QF3122 Brass Gas Ball Valve is a high-quality quarter-turn ball valve engineered for reliable on/off control in natural gas, manufactured gas, and liquefied petroleum gas (LPG) piping systems. Constructed from forged brass with a full-port design, it ensures unrestricted flow and minimal pressure drop when open. The valve features PTFE seals for long-term leak-tight performance and complies with national gas valve safety standards. Rated for a nominal pressure of 1.6 MPa and operating temperatures from -20°C to 60°C, it is suitable for residential, commercial, and utility applications. Threaded ends conform to ISO 228 (BSP parallel), available in sizes DN15 (G1/2"), DN20 (G3/4"), DN25 (G1"), DN32 (G1¼), DN40 (G1½), and DN50 (G2"). Its ergonomic handle includes a clear open/close indicator for safe, intuitive operation.
Installation diagram
Product Description
| DN | G | D | L | H | A |
| 15 | G1/2" | 12 | 50.5 | 42.5 | 85 |
| 20 | G3/4" | 15 | 54 | 44.5 | 85 |
| 25 | G1" | 20 | 63 | 48.5 | 85 |
| 32 | G1¼ | 25 | 71 | 61 | 106 |
| 40 | G1½ | 32 | 87 | 66.5 | 106 |
| 50 | G2" | 40 | 100 | 73 | 118 |
Technical Specifications
Nominal Pressure: 1.6 MPa
Working Medium: Natural Gas, Manufactured Gas, Liquefied Petroleum Gas (LPG)
Working Temperature: -20℃ ≤ t ≤ 60℃
Pipe Threads: ISO 228
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Gas Ball Valve
Coliter®’s gas ball valves are engineered for reliable, leak-tight shut-off in natural gas and LPG piping systems. The series includes standard models like QF3128 and QF3122, as well as lockable variants (QF5121A, QF5122) with integrated padlock or key-lock mechanisms to prevent unauthorized operation—ideal for utility, residential, and commercial gas lines. All valves feature high-quality forged brass bodies, PTFE seals for long-term tightness, full-port design for unrestricted flow, and compliance with national gas valve standards. Rated for working pressures of 0.1–0.5 MPa and temperatures from -20°C to +60°C, they ensure safe, durable performance with quarter-turn operation and clear open/close indicators.
