Coliter ® Brass Union Gate Valve – Lead-Free, PN16, Tool-Free Service

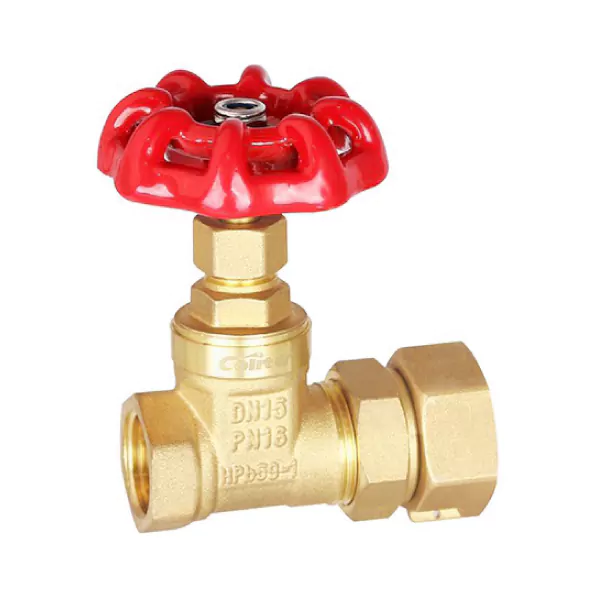

ZF1052 Brass Union Gate Valve – Tool-Free Maintenance for Potable Water Systems
The Coliter® ZF1052 Brass Union Gate Valve is a high-quality, lead-free shut-off valve designed for reliable isolation in residential and commercial potable water, heating, and low-pressure industrial pipelines. Its defining feature is the integrated union nut connection, enabling complete disassembly and maintenance—such as seat or stem replacement—without cutting or unsoldering pipes. Constructed from forged HPb59-1 or CW617N brass, it features a resilient rubber wedge for bubble-tight sealing, PTFE stem packing, and ISO 228 (BSP) parallel threads. Rated at PN16 (1.6 MPa) with a working temperature range of -20°C to 120°C, the ZF1052 complies with WRAS, ACS, and GB/T 17241 standards. Ideal for water meters, branch lines, and appliance shut-offs where future serviceability is essential.

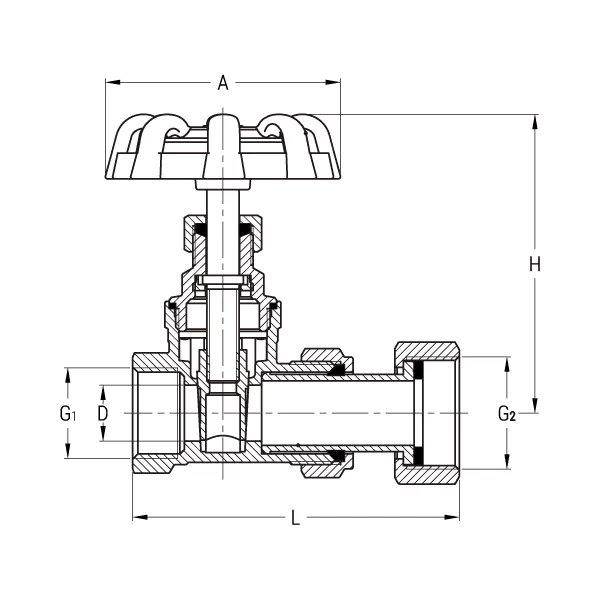

Installation diagram
Product Description
| DN | G1 | G2 | D | L | H | A |
| 15.20 | 1/2" | 3/4" | 13 | 67.5 | 67 | 55 |
| 20.20 | 3/4" | 3/4" | 17 | 70.5 | 74 | 55 |
| 20.25 | 3/4" | 1" | 17 | 70.5 | 74 | 55 |
Technical Specifications
Nominal Pressure:1.6 MPa
Working Medium:Water, Non-corrosive Liquids, Saturated Steam
Working Temperature:-20℃ ≤ t ≤ 120℃
Pipe Threads:ISO 228
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Brass Gate Valve
Coliter®’s brass gate valves provide reliable, full-port shut-off for residential and commercial plumbing, potable water, heating, and low-pressure industrial applications. The series includes the basic ZF1001 and ZF1002 brass gate valves, the ZF1052 brass union gate valve with integrated union nut for easy installation and maintenance, and the innovative ZF1082 brass check gate valve that combines gate isolation with non-return functionality in a single compact unit. All models feature forged brass bodies, PTFE or rubber wedge seals for drip-tight closure, and threaded (G) ends per ISO 228. Rated at PN16 (1.6 MPa) and suitable for temperatures up to 80°C, they comply with lead-free requirements and plumbing standards—ideal for water mains, branch lines, and appliance isolation where space, reliability, and simplicity matter.
