Coliter ® Magnetically Lockable Union Gate Valve – Lead-Free, PN16, WRAS Certified
ZF1062 Magnetically Lockable Union Gate Valve – Tamper-Proof & Serviceable for Water Meter Isolation

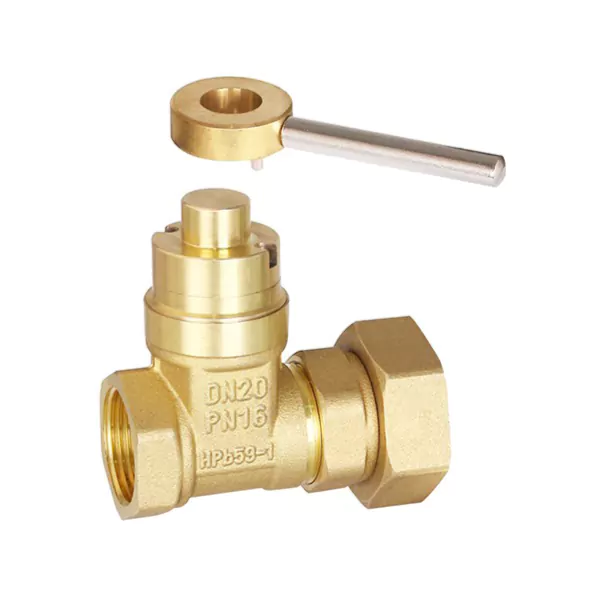

The Coliter® ZF1062 Magnetically Lockable Union Gate Valve is a lead-free brass gate valve engineered for secure and maintainable shut-off in residential water meter leads and utility service lines. It combines a proprietary magnetic locking mechanism—requiring a dedicated magnetic key for operation to prevent tampering—with an integrated union nut connection that allows full disassembly without pipe cutting, enabling easy maintenance of internal components such as the stem or seat. Constructed from forged HPb59-1 or CW617N brass with a resilient rubber wedge seal, it ensures bubble-tight closure and full-port flow. Rated at PN16 (1.6 MPa) and suitable for temperatures from -20°C to 90°C, the ZF1062 complies with WRAS, ACS, and GB/T 17241 standards for potable water safety. Available in sizes DN15–DN25 with ISO 228 (BSP) threads, it offers a reliable solution where both security and future serviceability are essential.

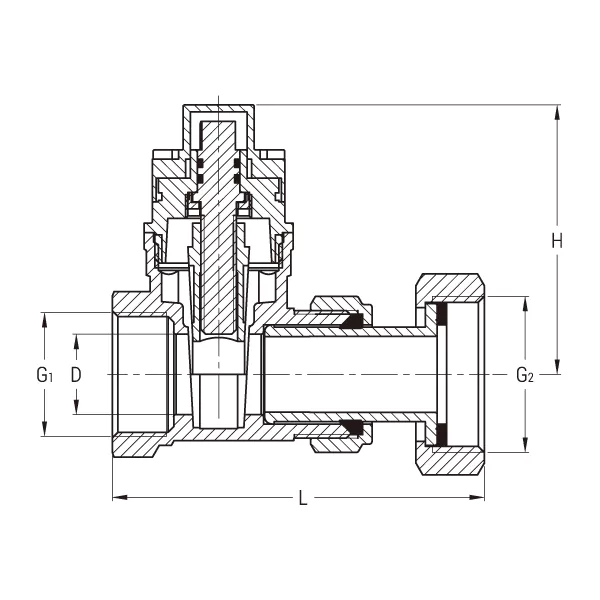

Installation diagram
Product Description
| DN | G1 | G2 | D | L | H |
| 20.20 | 3/4" | 3/4" | 17 | 77 | 57 |
| 20.25 | 3/4" | 1" | 17 | 79 | 57 |
Technical Specifications
Nominal Pressure:1.6 MPa
Working Medium:Water, Non-corrosive Liquids, Saturated Steam
Working Temperature:0℃ ≤ t ≤ 90℃
Pipe Threads:ISO 228
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Lockable Gate Valve
Coliter® offers a complete range of lockable gate valves engineered to prevent unauthorized operation in residential, municipal, and utility applications. The series includes magnetic lockable types (e.g., ZF1011, ZF1072) requiring a proprietary magnetic key, and mechanical lockout models (e.g., ZF1021, ZF1022) with slide or pin locks—ideal for water meter leads, building risers, and public infrastructure. All valves feature lead-free brass bodies, comply with WRAS, ACS, and GB/T 17241 standards for potable water, and support full-port flow with zero leakage. Available in DN15–DN25 with ISO 228 threads. Trusted by water authorities worldwide for tamper-proof performance and OEM flexibility.
