Coliter ® Smart Manifold, PN1.0MPa, 0–110°C, Brass HPb58-2, Octagonal Header, 2–10 Circuits

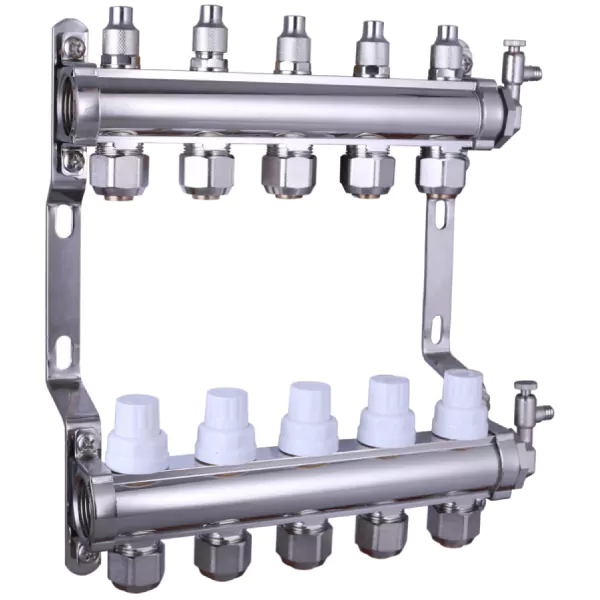

FSQ2009A Smart Manifold – Premium One-Piece Forged Brass Distribution System with Enhanced Design for Hydronic Heating
The Coliter® FSQ2009A Smart Manifold is a high-performance brass manifold engineered for reliable, centralized distribution of hot and cold water in underfloor heating, radiator circuits, and modern plumbing systems. Crafted from forged HPb58-2 brass using one-piece hot forging technology, it ensures uniform, dense walls free of sand holes, with an average wall thickness of ≥2.0 mm for superior strength and durability. The main header features a distinctive octagonal cross-section, combining rational structural design with a premium aesthetic. Available in configurations from 2 to 10 circuits, it supports branch connections for 12×16 mm or 16×20 mm PEX/PERT tubing at a standard spacing of 50 mm. The main pipe uses DN25 (G1") threaded connections, and the center height is fixed at 210 mm. Rated for PN ≤ 1.0 MPa and medium temperatures from 0°C to 110°C, it includes a 360° rotatable manual air vent for easy access and live-joint outlet adapters enabling quick, tool-free installation and maintenance. Designed for high flow capacity and resistance to water hammer and thermal expansion, the FSQ2009A delivers leak-free, long-term performance—ideal for residential and light commercial radiant heating applications.

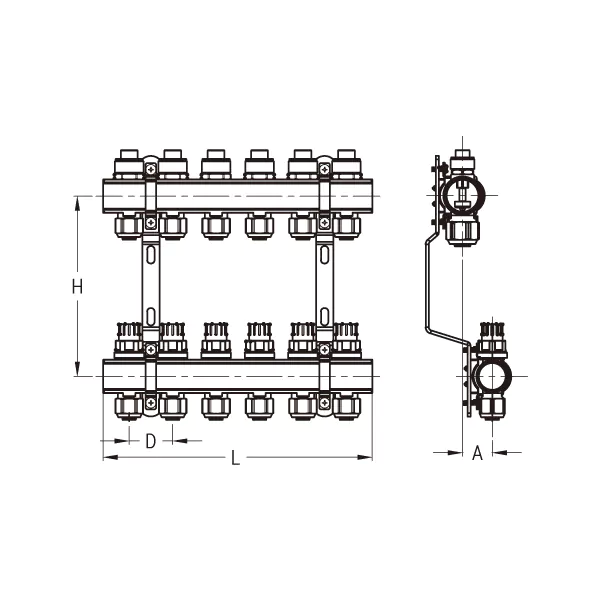

Installation diagram
Product Description
| DN | D | L | A | H |
| 25*1216 | 50 | (N-1)*50+60 | 36.5 | 210 |
| 25*1620 | 50 | (N-1)*50+60 | 36.5 | 210 |
Technical Specifications
Nominal Pressure: PN ≤ 1.0 MPa
Medium Temperature: 0℃ ≤ t ≤ 110℃
Main Pipe Connection: DN25 - G1"
Branch Pipe Spacing: 50 mm
Branch Pipe Connection: 1216 / 1620
Material: Brass HPb58-2
Circuit Count: 2 - 10 Circuits
Center Height: 210 mm
Surface Finish: Polished and Nickel Plated
Working Medium: Hot/Cold Water, Non-corrosive Liquids
Product Features
1. One-Piece Forging: High-density hot forging ensures uniform, dense walls free of sand holes.
2. Octagonal Design: The main manifold features an octagonal structure, offering a rational design and a steady, premium appearance.
3. Durable Build: Average wall thickness ≥ 2.0 mm, making it sturdy and durable.
4. 360° Rotatable Air Vent: The manual air vent component rotates 360° freely for easy access and operation.
5. Easy Installation: Live joint outlet adapters allow for convenient installation and maintenance.
6. High Flow Capacity: Engineered to withstand water hammer and thermal expansion/contraction, ensuring zero leakage or bursting.
