Coliter ® Manual Manifold, PN1.0MPa, 0–110°C, Brass HPb58-2, 2–10 Circuits

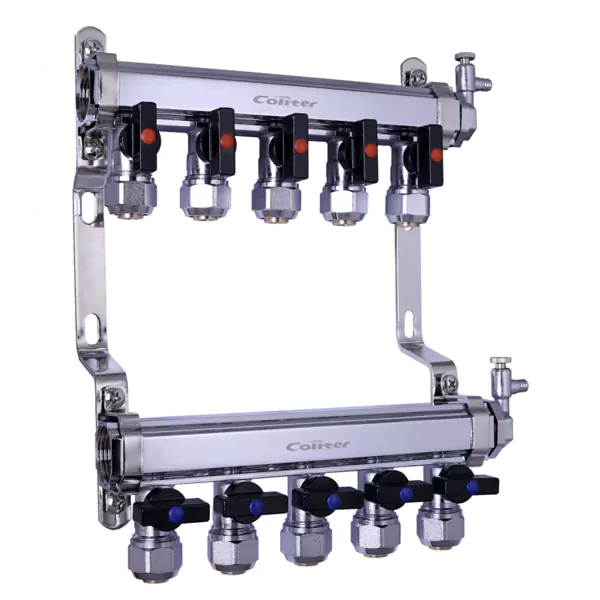

FSQ1028 Manual Manifold – High-Density Forged Brass Distribution Header for Hydronic Heating Systems
The Coliter® FSQ1028 Manual Manifold is a robust, one-piece forged brass manifold engineered for reliable distribution of hot and cold water in underfloor heating, radiator circuits, and domestic plumbing systems. Made from high-purity HPb58-2 brass, it features uniform wall thickness (average ≥2.5 mm), freedom from sand holes, and a polished nickel-plated surface for corrosion resistance and aesthetic appeal. Designed for manual operation only, it supports 2 to 10 circuits with standard branch pipe connections of 12×16 mm or 16×20 mm PEX/PERT tubing at a precise spacing of 48 mm. The main header uses DN25 (G1") threaded inlet/outlet, and the overall center height is fixed at 210 mm. Rated for a nominal pressure of PN ≤ 1.0 MPa and medium temperatures from 0°C to 110°C, it ensures leak-free performance, easy installation via live-joint outlet adapters, and long-term durability—ideal for residential and light commercial radiant heating applications.

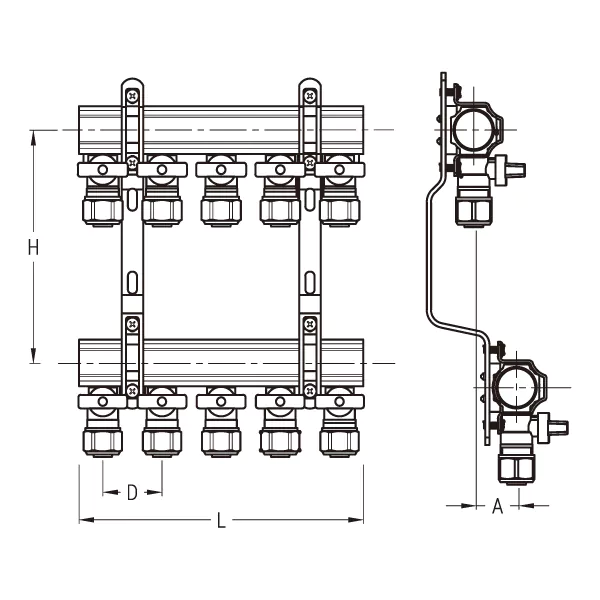

Installation diagram
Product Description
| DN | D | L | A | H |
| 25*1216 | 48 | (N-1)*48+53 | 36.5 | 210 |
| 25*1620 | 48 | (N-1)*48+53 | 36.5 | 210 |
Technical Specifications
Nominal Pressure: PN ≤ 1.0 MPa
Medium Temperature: 0℃ ≤ t ≤ 110℃
Main Pipe Connection: DN25 - G1"
Branch Pipe Spacing: 48 mm
Branch Pipe Connection: 1216 / 1620
Material: Brass HPb58-2
Circuit Count: 2 - 10 Circuits
Center Height: 210 mm
Surface Finish: Polished and Nickel Plated
Working Medium: Hot/Cold Water, Non-corrosive Liquids
Product Features
1. One-Piece Forging: High-density hot forging ensures uniform wall thickness and freedom from sand holes.
2. Premium Appearance: Polished and nickel-plated surface offers a mirror-like shine, remaining new-looking over time.
3. Heavy-Duty Construction: Average wall thickness ≥ 2.5 mm, ensuring sturdiness and longevity.
4. Easy Installation: Live joint outlet adapters allow for convenient installation and maintenance.
5. High Flow Design: Resists water hammer impact and thermal expansion/contraction, preventing leaks and bursts.
