Coliter ® Brass Angle Valve Hot Water, JF1010-R, 1.6MPa, 0–100°C, Red Handle, BSP Threaded

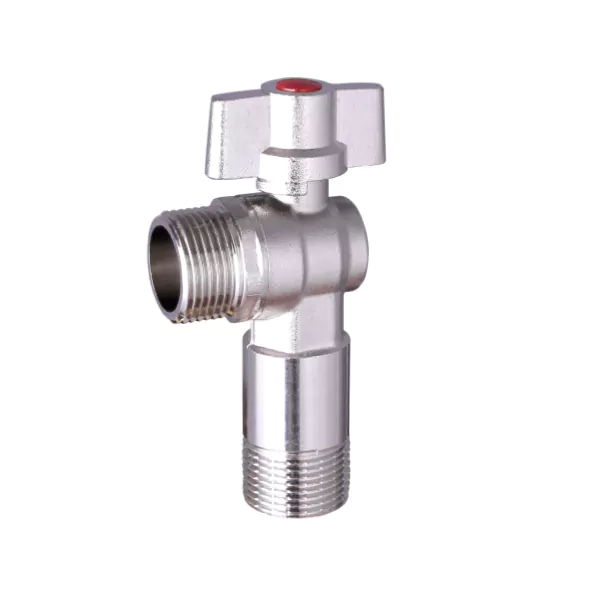

JF1010-R Brass Angle Valve – Red Handle Hot Water Shut-Off Valve with 360° Rotatable Nut
The Coliter® JF1010-R Brass Angle Valve is a high-quality shut-off valve designed for reliable isolation of hot water lines in residential and commercial plumbing systems. Featuring a distinctive red color-coded handle to indicate hot water service, it is constructed from forged lead-free brass for durability and corrosion resistance. The valve incorporates a precision ceramic disc cartridgePN16 (1.6 MPa), it handles water within a temperature range of 0°C to 100°C. Both inlet and outlet are equipped with standard ISO 228 (G1/2" BSP parallel) threads, and the nut is 360° rotatable for easy installation in confined spaces—ideal for connections to faucets, water heaters, washing machines, and toilets. Complies with lead-free requirements for potable water safety.

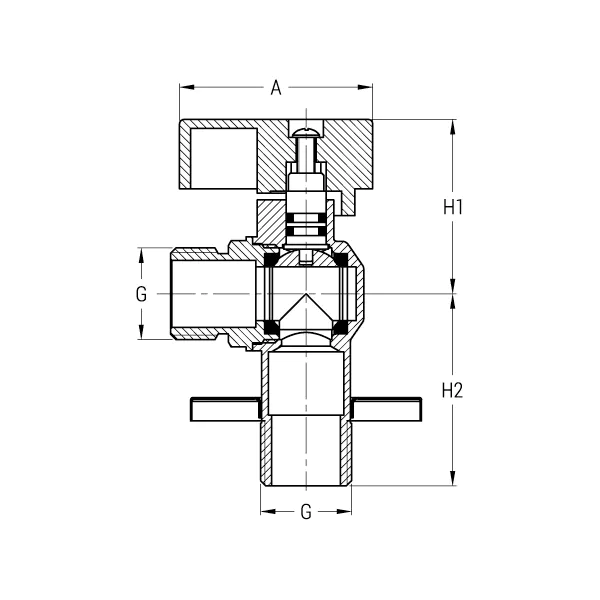

Installation diagram
Product Description
| DN | G | H1 | H2 | A |
| 15 | G1/2" | 39 | 62 | 45 |
| 20 | G3/4" | 39 | 65 | 45 |
Technical Specifications
Nominal Pressure: 1.6 MPa
Working Medium: Water
Working Temperature: 0℃ ≤ t ≤ 100℃
Pipe Threads: ISO 228
Product Inquiry
We will contact you within one working day. Please pay attention to your email.
Faq - Frequent questions
Introduction to Angle Valve&Bibcock
Coliter®’s angle valves and bibcocks provide reliable shut-off and flexible connection for faucets, toilets, washing machines, and water heaters in residential and commercial plumbing. The series includes the JF1008-B/R and JF1010-B/R models—available in blue (cold) and red (hot) color-coded handles—with high-quality forged brass bodies, ceramic disc cartridges for drip-free operation, and 360° rotatable nuts for easy installation in tight spaces. Rated at PN16 (1.6 MPa) and suitable for temperatures up to 90°C, they feature standard G1/2" ISO 228 inlet/outlet threads and comply with lead-free requirements. Essential for maintenance isolation, leak prevention, and long-term plumbing reliability.
